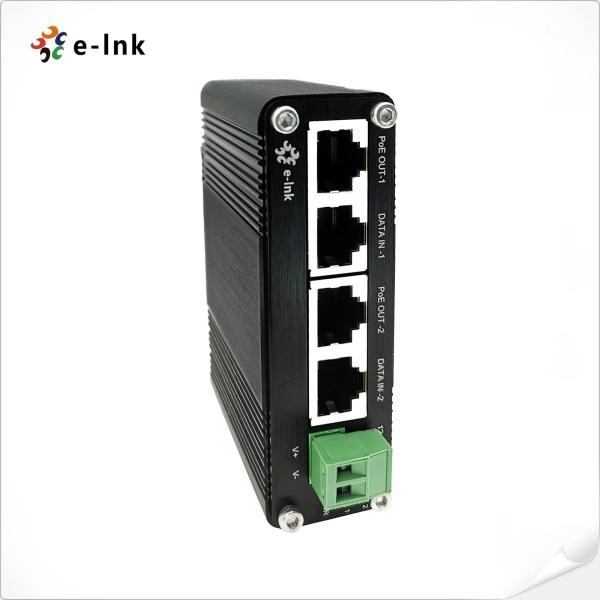

OEM High Power 60W Gigabit PoE Injector Adapter Power Over Ethernet

  • 1
  • 2

Brand Name : E-link

Model Number : LNK-INJ302

Certification : RoHS,CE,FCC

Place of Origin : China

MOQ : 1pcs

Price : To be negotiated

Payment Terms : L/C, T/T, Western Union, MoneyGram,Paypal

Supply Ability : 1000PCS/Month

Delivery Time : 5-15working days

Packaging Details : PoE Injector Splitter Standard Export Package

Keyword : PoE Injector Splitter

Connector : 4x RJ45

PoE Standard : IEEE802.3af/at

Max. Power per Port : 60W Max (Alternative B Mode)

Power Input : 12-48VDC

Weight : 0.26Kg

Contact Now

PoE Injector Splitter Power Over Ethernet High Power PoE Injector PoE Adapter
PoE Injector Splitter Advantages
► 12~48VDC Power Input
► 2 RJ45 Ethernet Data Input Port + 2 RJ45 Power Over Ethernet Output Port (Data + Power)
► Support IEEE802.3at Power over Ethernet (PoE+) Power Sourcing Equipment
► Max 60W PoE at one port, total POE power less than 60W
► Support 10/100/1000Base-TX
► Support DIN-Rail & Wall-mount installation.
► Extensive LED indicators for PoE diagnostics
Technical Indexes
Standards: IEEE802.3af Power over Ethernet
IEEE802.3at Power over Ethernet
Processing Type: Forward
Half-duplex, Full-duplex
Forward Filter Rate: 1,488,000pps (1000Mbps)
Cabling: 10/100/1000Base-T: Cat5 or above
Maximum Distance: Cat5 UTP up to 100m
Connector: 4x RJ45
Input Power: 12~48VDC (Terminal Block)
Power Consumption: 70W Max.
PoE (Power over Ethernet)
Standard: IEEE802.3af/at
Port: RJ45
Power Pin Assignment 4/5(+), 7/8(-)
Max. Power per Port: 60W Max (Alternative B Mode)
Casing: Aluminum Case
Mounting Options: DIN-Rail / Wall-mount
Regulatory Approvals
ISO9001
FCC part 15, Class A
CE-EN55022:2006+A1: 2007 Class A
Surge Protection:
RJ45: 1KV
Power: 500W
ESD: 4KV/8KV

Overview

The LNK-INJ302 product is a Hardened 2 ports Gigabit High Power PoE Injector allows you to connect the IEEE 802.3 af/at PoE device such as camera and access point with a non PoE LAN switch within the distance of 100m.

Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000Base-T and are compliant with IEEE 802.3ab. The PoE Out port is also compliant with IEEE 802.3 at.

LNK-INJ302 provides an integrated power solution with a wide range voltage of 12~48VDC for high availability applications.

OEM High Power 60W Gigabit PoE Injector Adapter Power Over Ethernet

Ordering Information

Model Description
LNK-INJ302 12~48VDC Power Input Industrial 2 ports Gigabit PoE+ Injector
Mounting Options ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options ► Power Supply is to be purchased separately
